OFFSHORE PENSACOLA FOIL TESTING

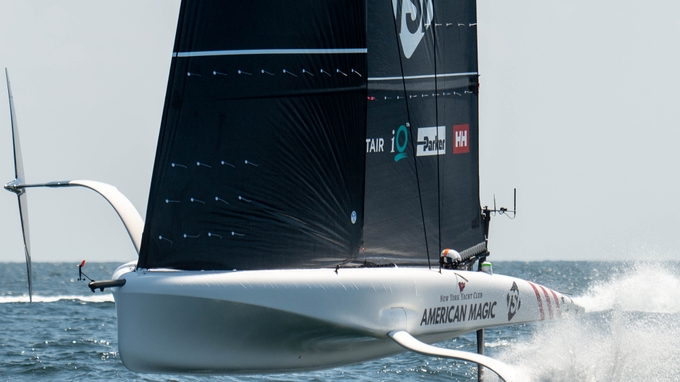

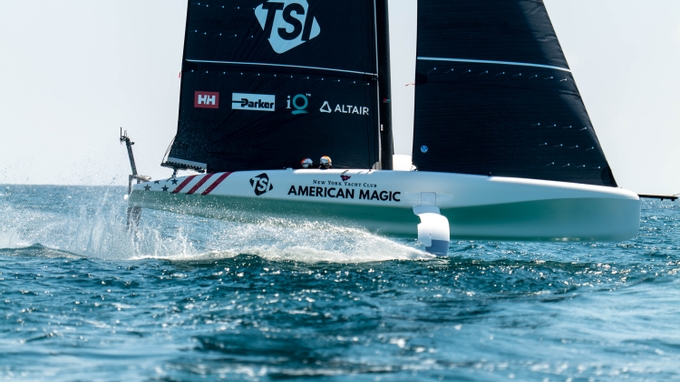

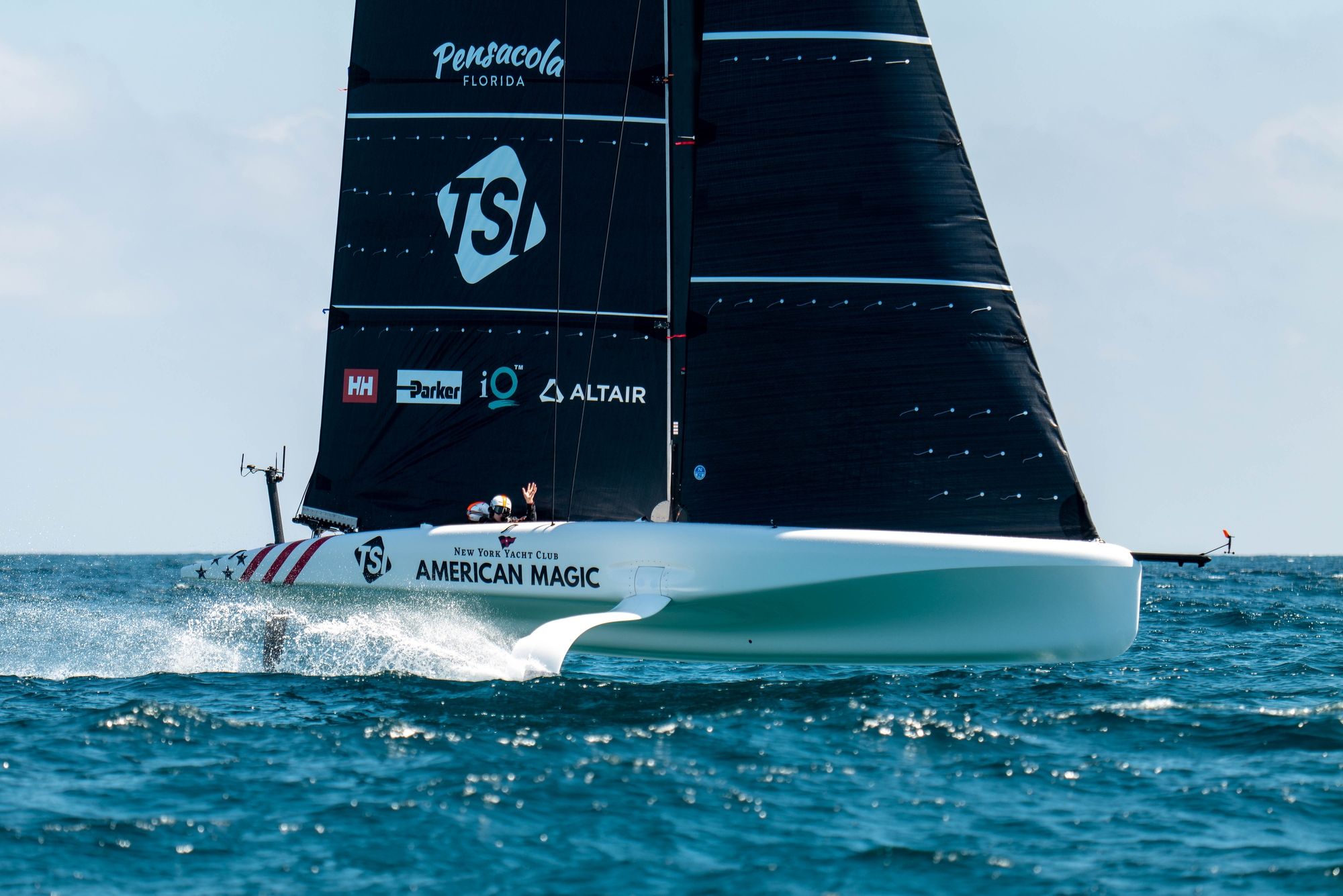

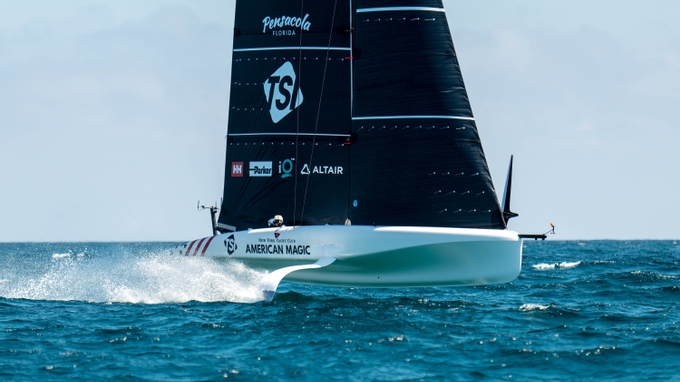

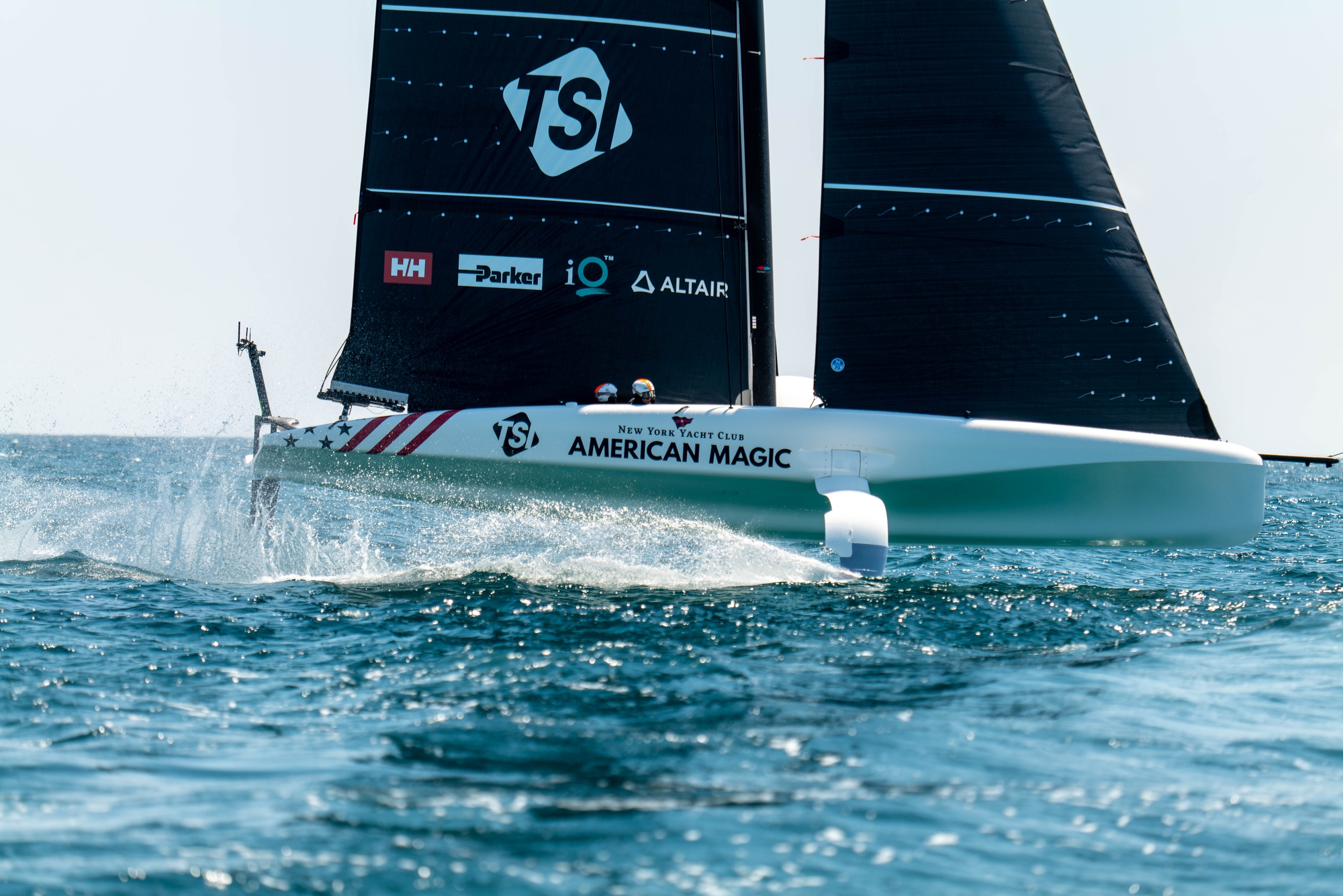

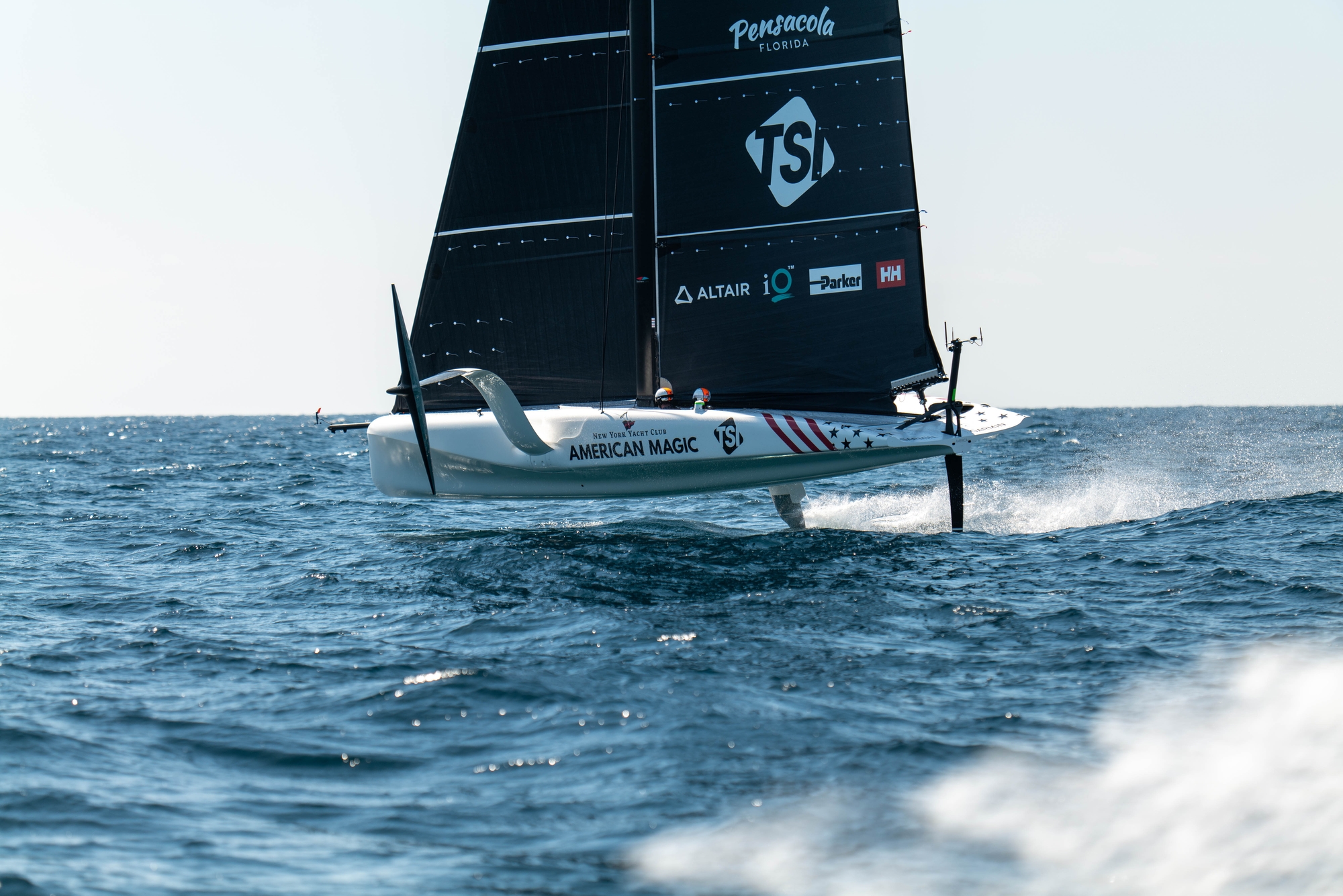

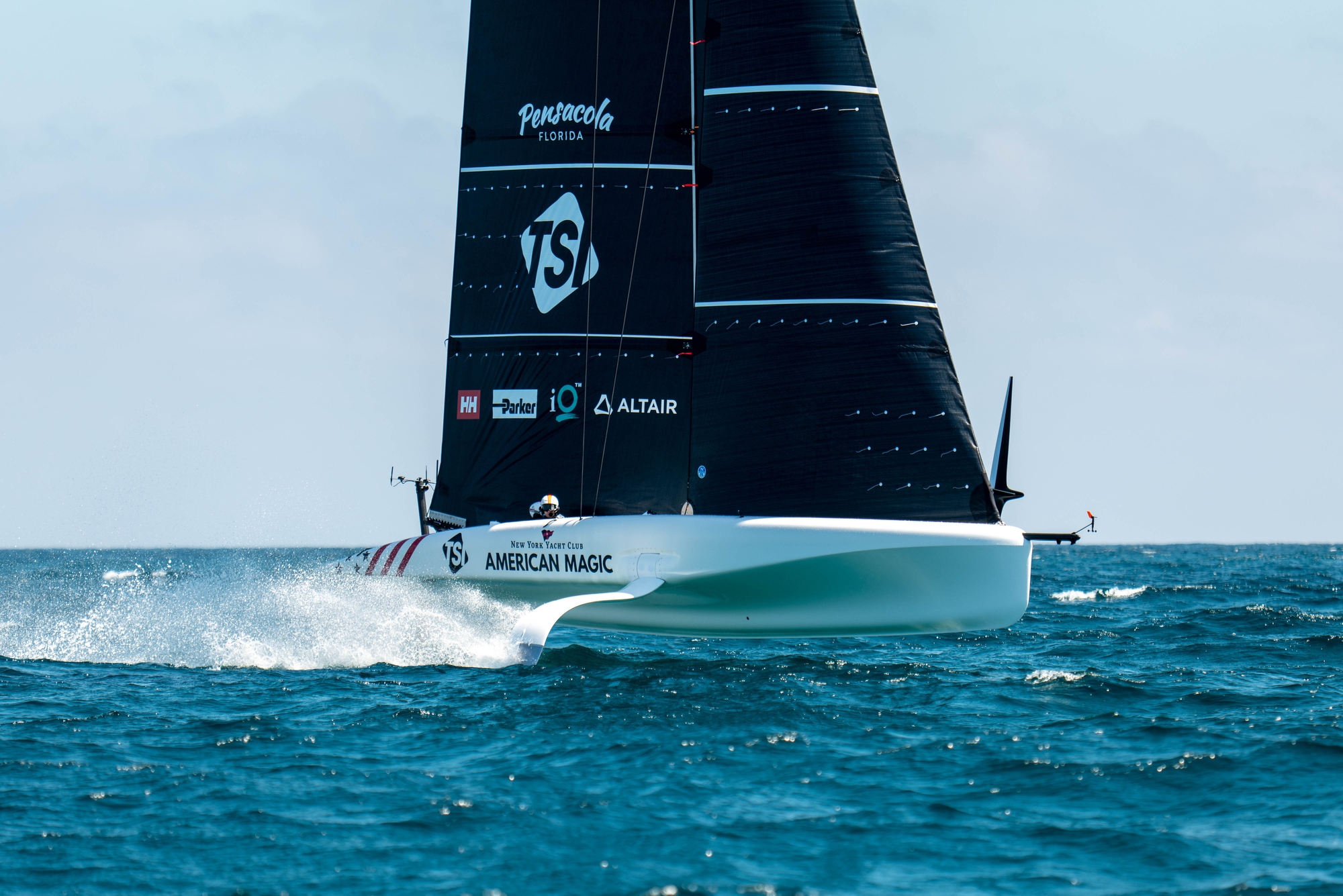

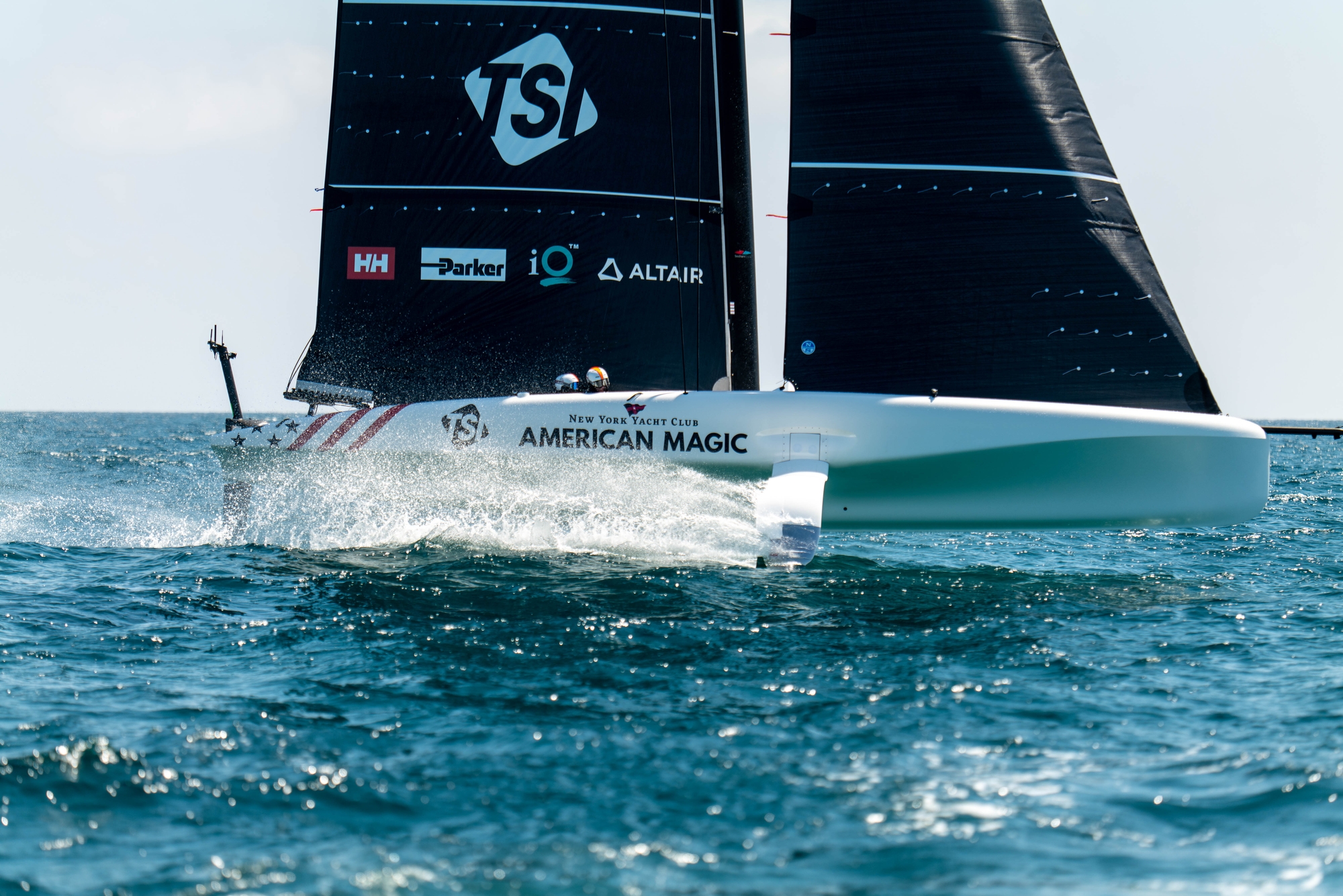

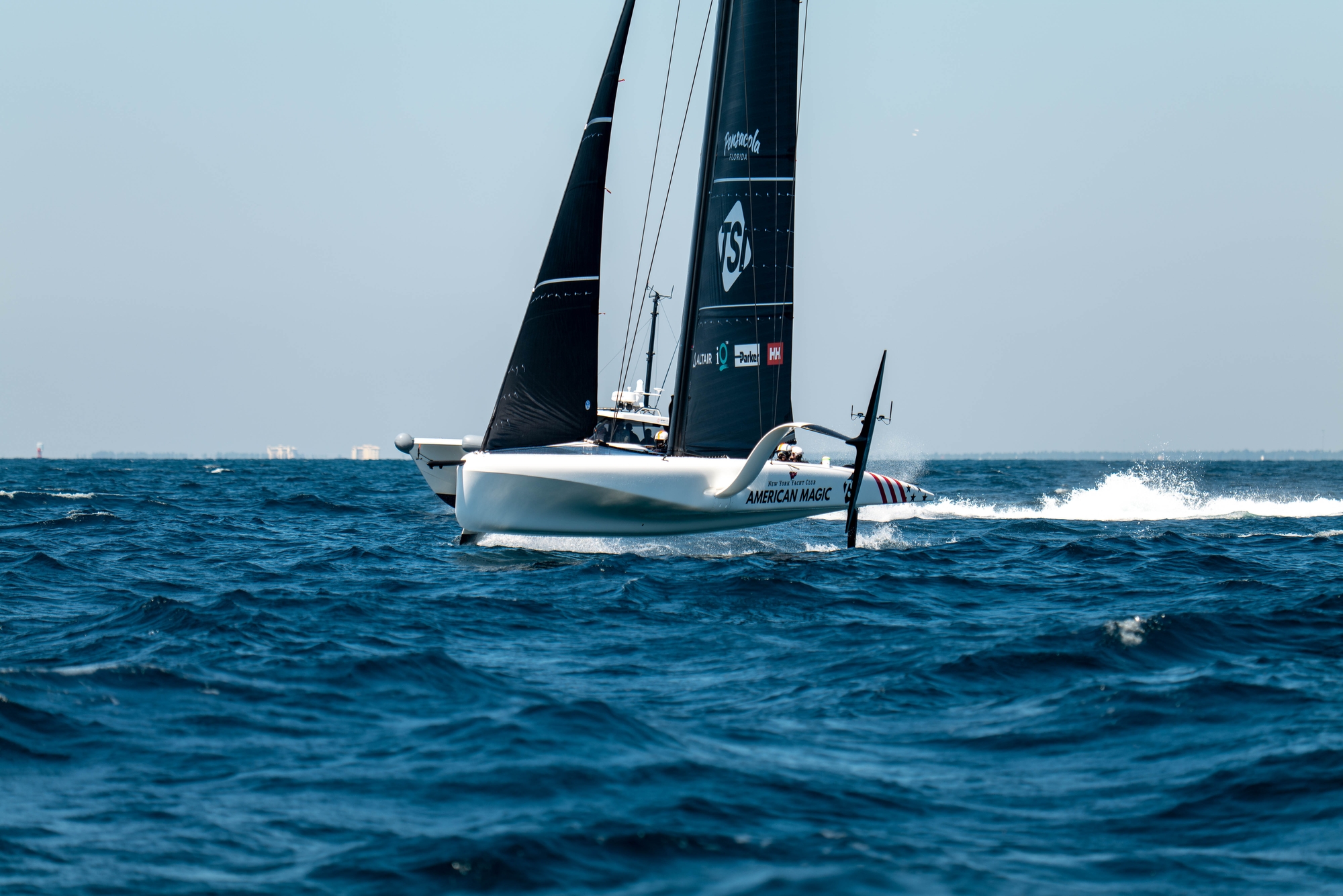

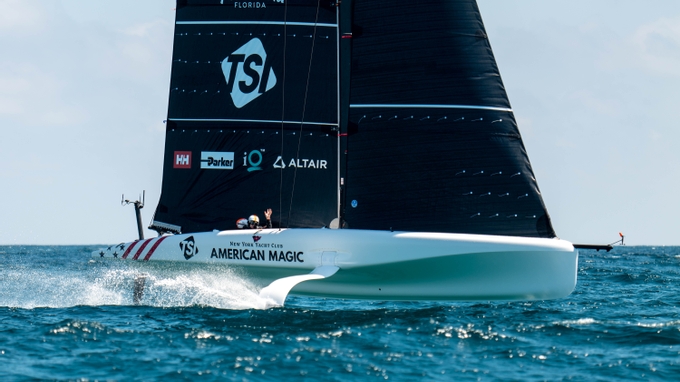

It was a big day of foil evaluation for New York Yacht Club American Magic offshore from Pensacola Bay as the team brought more new technology to the party on the beautifully sculpted starboard foil in the form of a covering plate high up on their foil arm, similar to what we are seeing (and have seen) with Emirates Team New Zealand on their AC75 ‘Te Rehutai.’ With a long-span foil to control on ‘America’ thoughts turn towards what’s called the ’actuator’ system which controls the trim of the foil flap as an explanation for the new covering. It’s certainly hiding something.

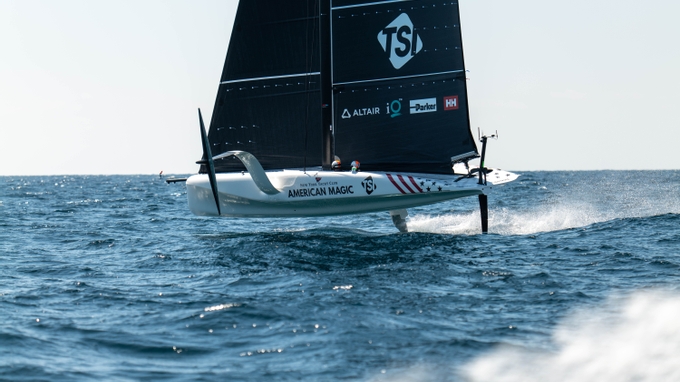

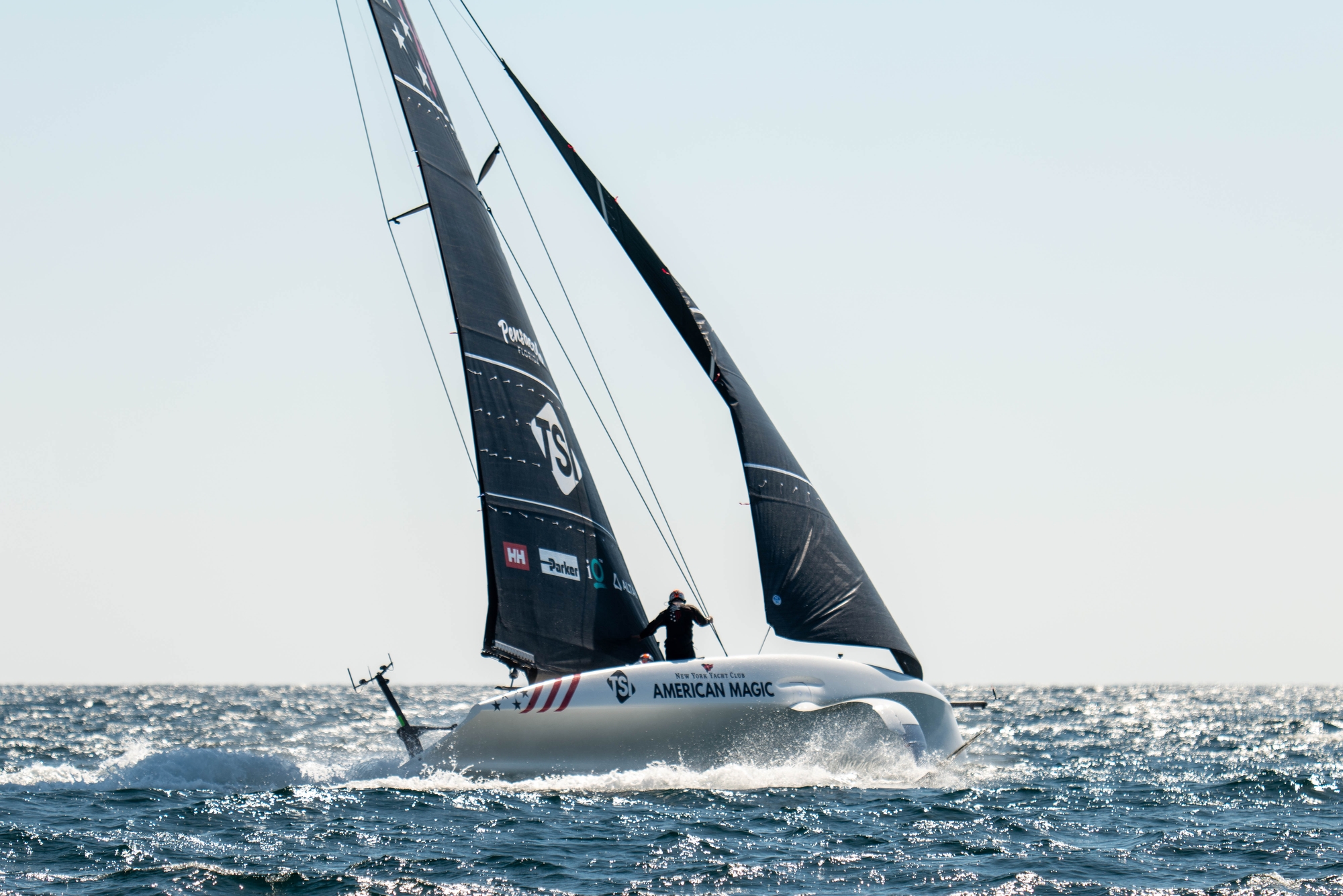

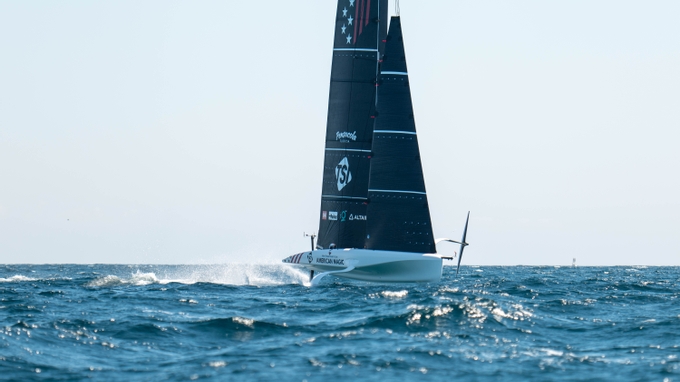

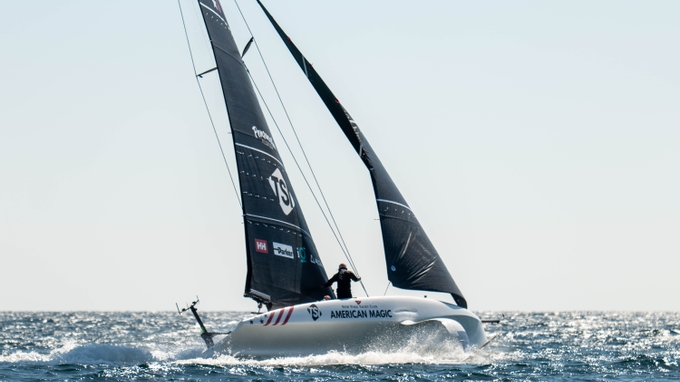

The sailors were keen to put ‘America’ on long runs in chop that measured some 2-4 feet over a rolling swell and made for a tricky day on the recon RIB trying to keep pace with the AC40 as it rocketed off upwind with Tom Slingsby and Paul Goodison unleashing the awesome power of these boats.

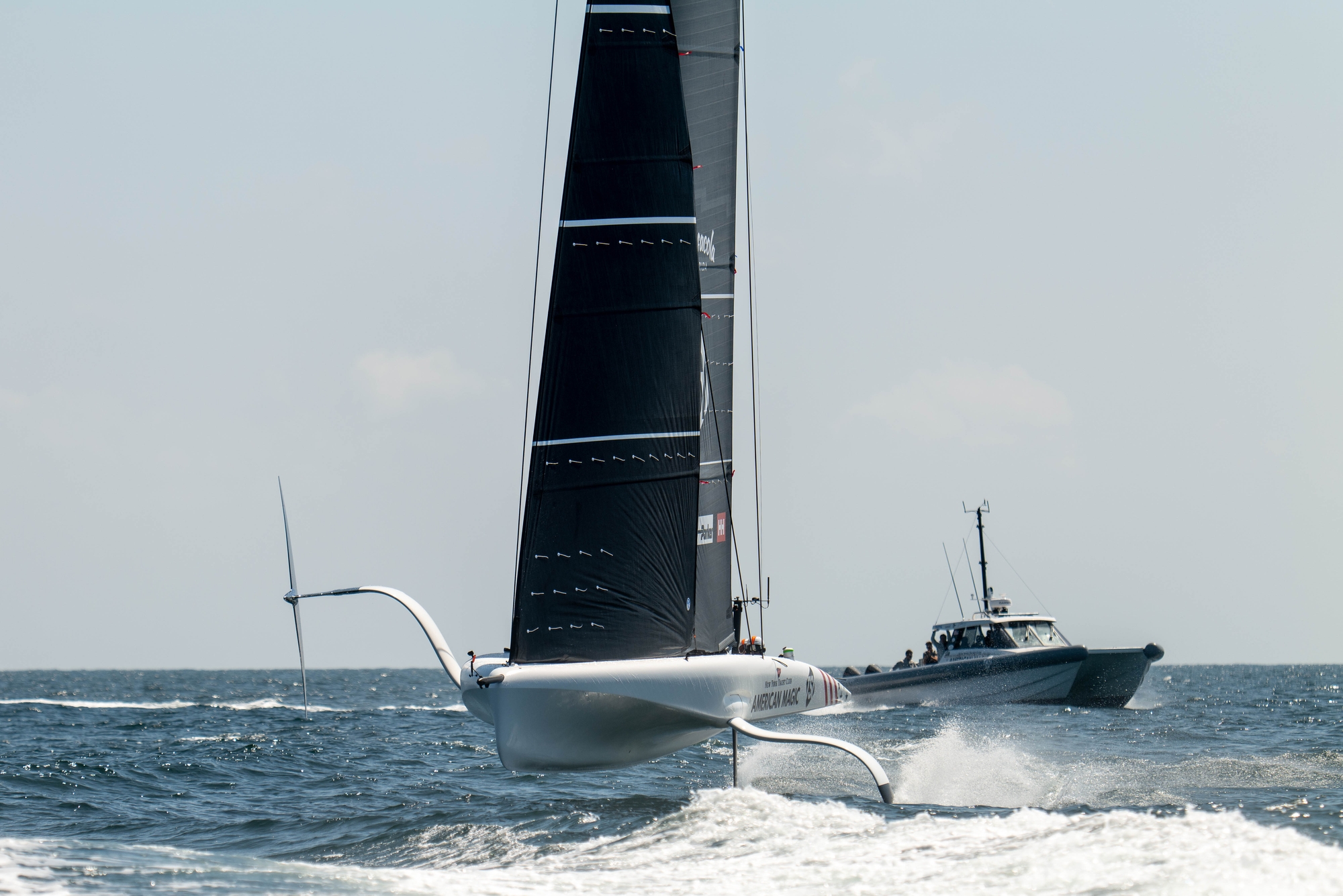

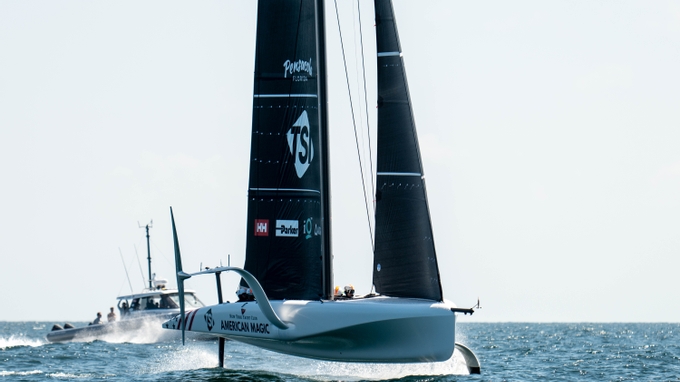

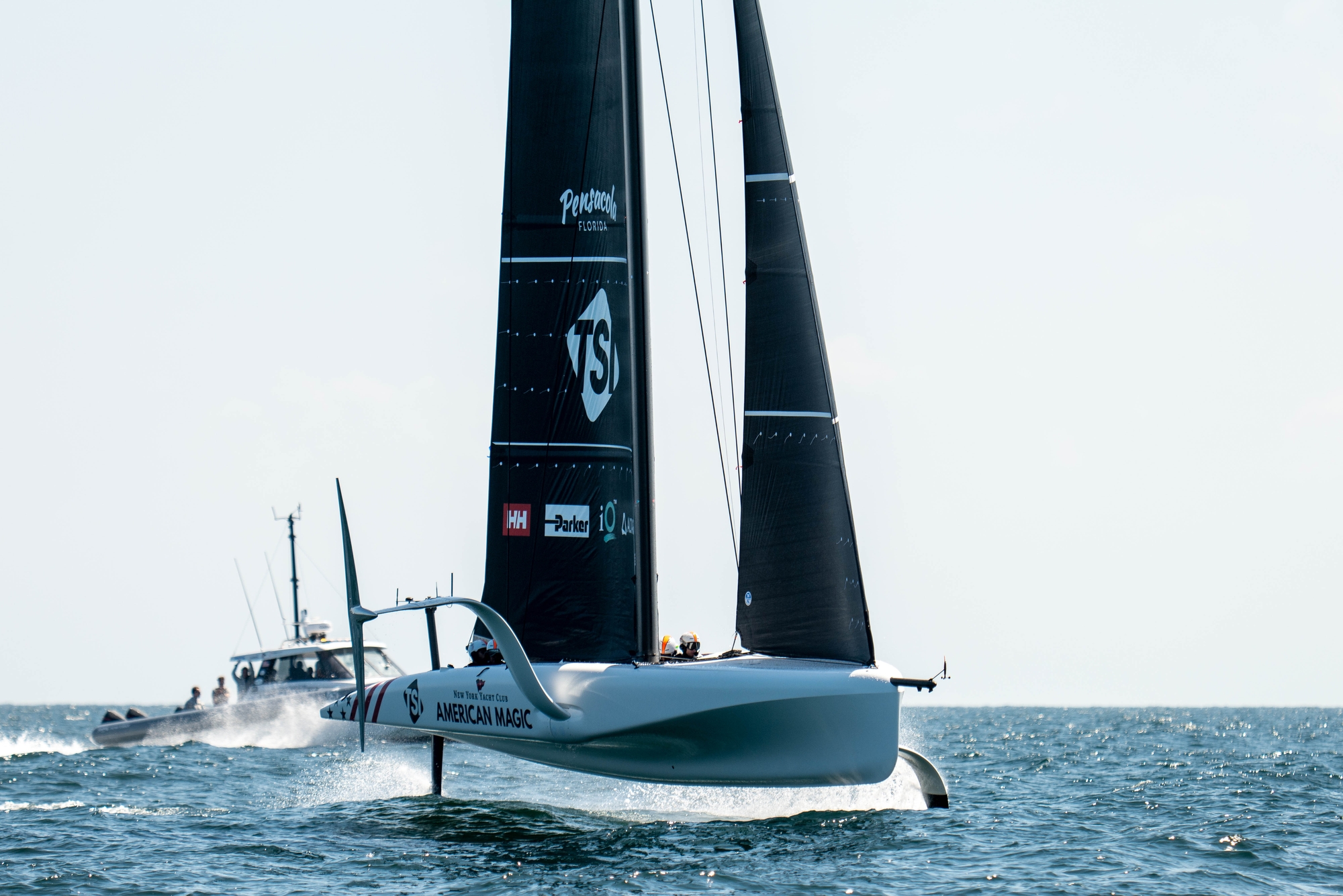

Flight was held consistently through the auto-pilot but over-rides could be spotted as the team tested through an agenda of ride height, cant and pitch whilst 1988 Olympian in the Tornado Class and part of the design team of the America’s Cup winning trimaran of 2010, Pete Melvin, watched on from the Chase Boat. Pete is part of the American Magic design team and Andrew Campbell, Flight Controller said in interview afterwards: “Pete is one of our great hull designers here…he was pretty curious to come out and see how the sea state affects these platforms and how this boat looks different from ‘Patriot’…he hasn't seen that comparison yet so getting him on the water…getting all the designers on the water, is good value for us.”

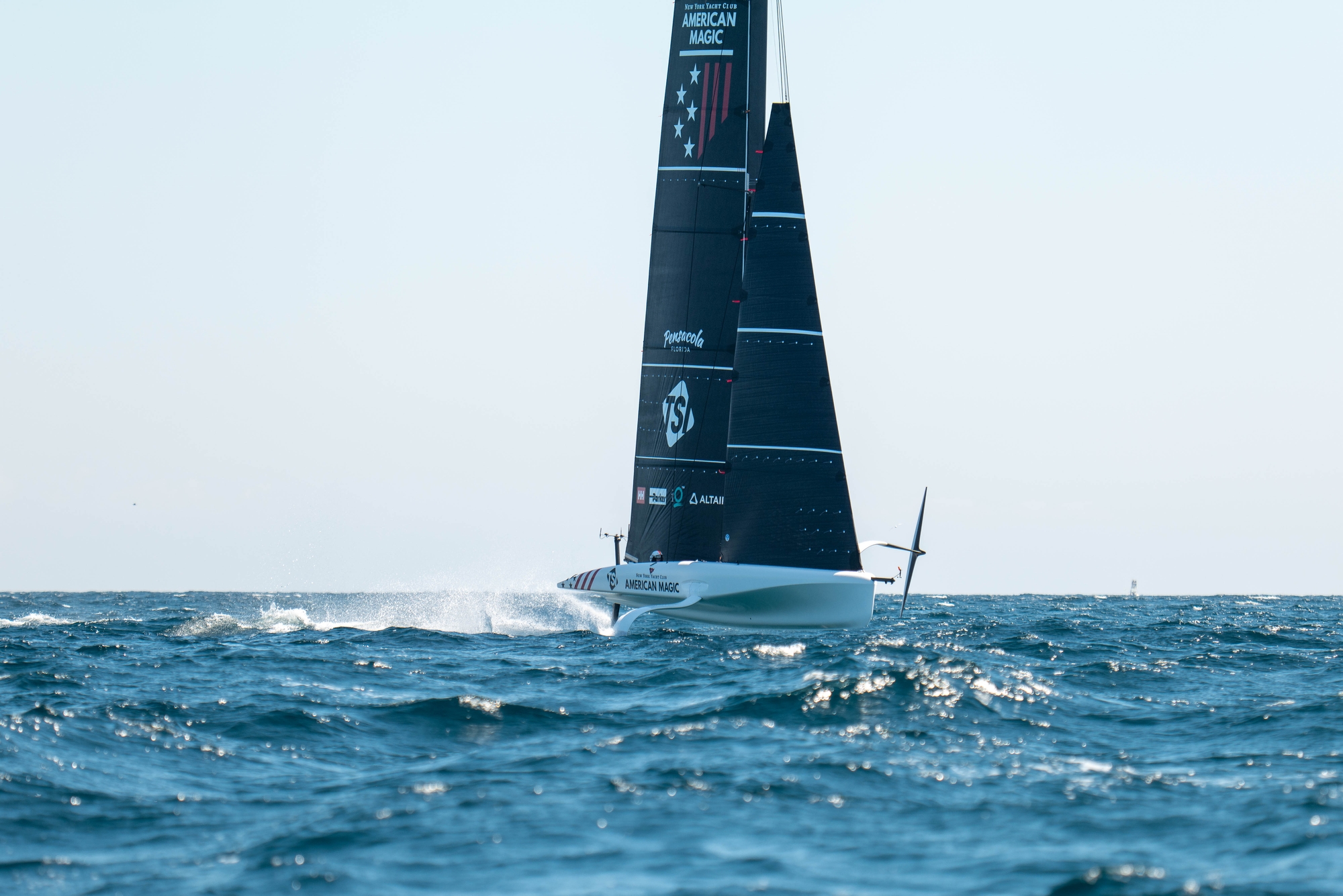

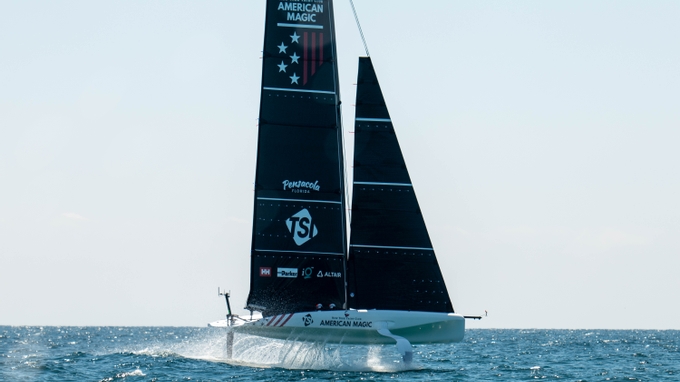

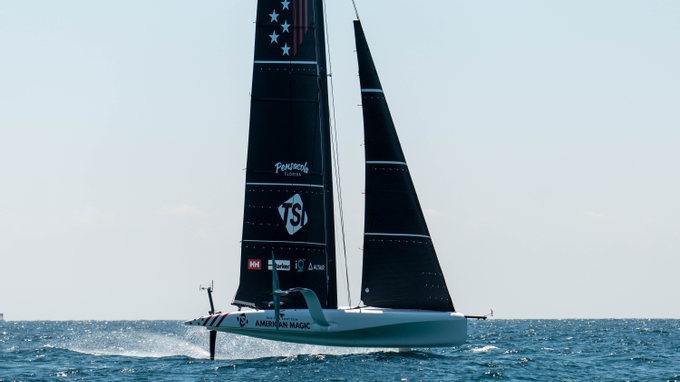

It was a perfect day for testing with a solid 10-13 knots all afternoon that saw ‘America’ up on foil for over 103 minutes in total. Tacks and gybes were slick as usual, but it wasn’t a day for the tally count rather a session to extract huge data with a drone in the sky also looking at sail shape. American Magic are far down the sail control technology route evidenced by a lengthy mainsail hoist initially and a lot of time spent down at the clew box area. The new double-skin mainsail is an LEQ12 declaration and the battening, particularly in the lower third is complex, end-plated at the foot with two rods sticking out back towards the mainsheet and traveller control as we’ve seen with INEOS Britannia in their early ‘T6’ mainsail configuration.
Andrew Campbell, one of the best interviewees in the Cup, gave some great, honest insight into the programme which has another month to run before the team trip over to Barcelona and take charge of their second AC40 on arrival. Talking about the foil development, he commented: “We're just doing a lot of experiments with these foils trying to understand what types of modifications we can be looking at moving forward and it's all part of our appendage exploration here trying to get a feel for what shapes are going to be right long term… these boats are a handful to sail when the sea state is such that the T-sync you know where the foil, the bulb in the water and the bottom of the hull and the waves get bigger than that distance - you can find yourself in trouble pretty quick.”
They certainly didn’t look to be having too much trouble with another blistering performance from the sailors but there’s always improvements and learnings as Andrew commented: “The wave state, the sea state complicates these boats. It makes them more difficult to sail and you end up having to look for some more forgiving settings in the sail plan and the foil plan so trying to get a good handle on how much to compromise to make the boat easier to sail and still be able to get to optimum performance, those kinds of compromises are what we're looking at and deciding about.”
Looking forward to the change in the programme as the team moves en-masse to Barcelona, Andrew offered: “We're excited about how we've gone here and I think we're still kind of opening this can of worms that is the AC40, trying to understand its limitations, understand its strong points and we're looking forward to getting to it on the water when we get to Barcelona, I think what will be a really good step for us.”
American Magic, as arguably the most relatable and certainly the most honest team in this America’s Cup cycle are coming to Europe high on performance and technique with an all-star sailing team that are looking mighty on the water. The coming months will be fascinating.
Could this be the challenge that sees the Cup comes ‘home’ to West 44th Street? Hard to bet against. They look good. Very good.
On-Water Recon Unit Notes: America rolled out at 0745 with a new addition to the starboard foil arm (new piece covering outboard side inspection cover).

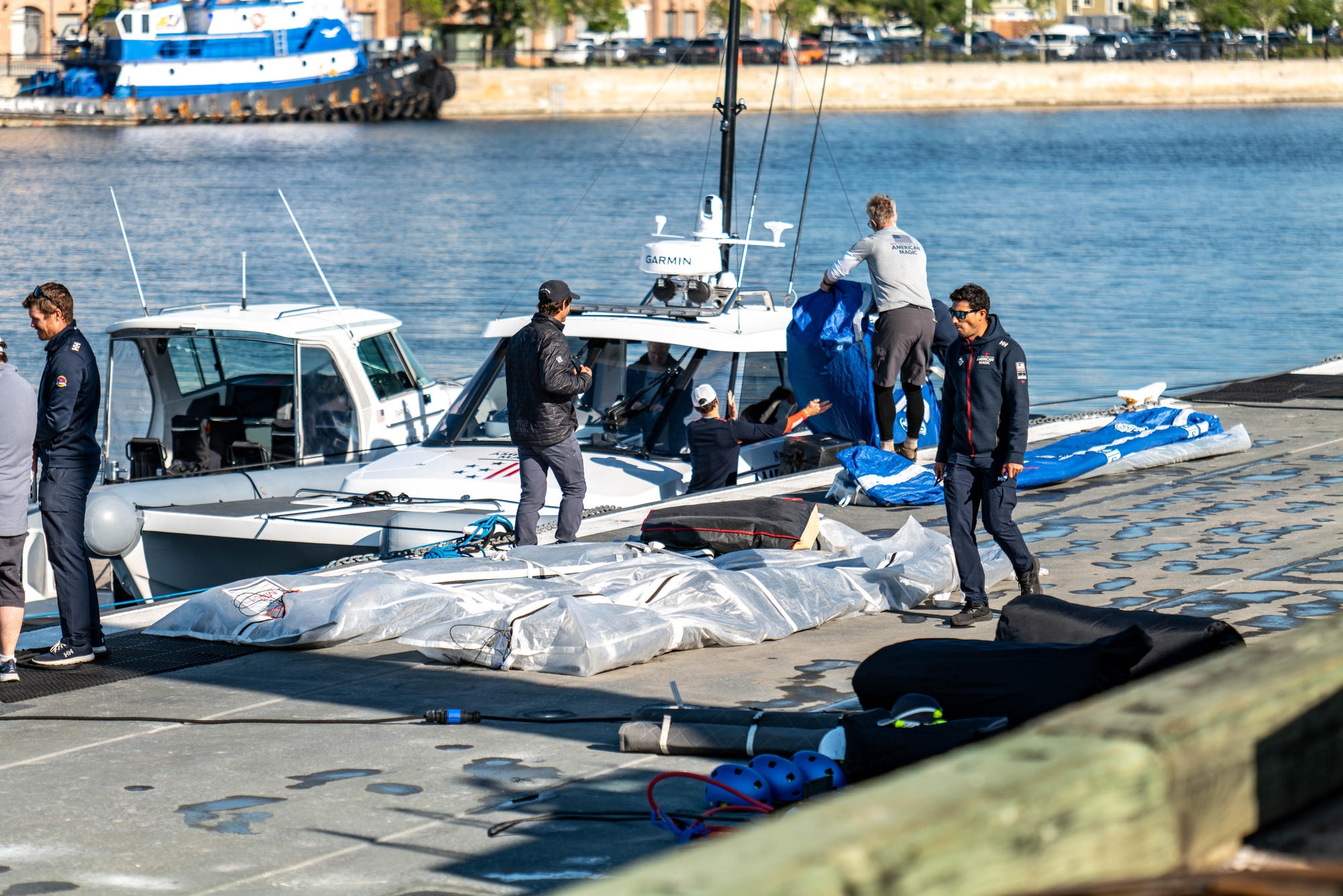

Dock out was 0930, America was towed offshore. Pete Melvin and Richard Bouzaid were observed on Chase 2. The main went up at 1000 and work was performed in the tack area for about 30 minutes.
The J2 went up at 1035 and sailing began at 1042. The sailing mostly consisted of long stints on one board. The recon rib struggled to keep pace due to the sea state. The team took a break at 1216 and performed work on the tack area of the main, appearing to replace the bottom batten. Attention was also given to the jib tack during this time.

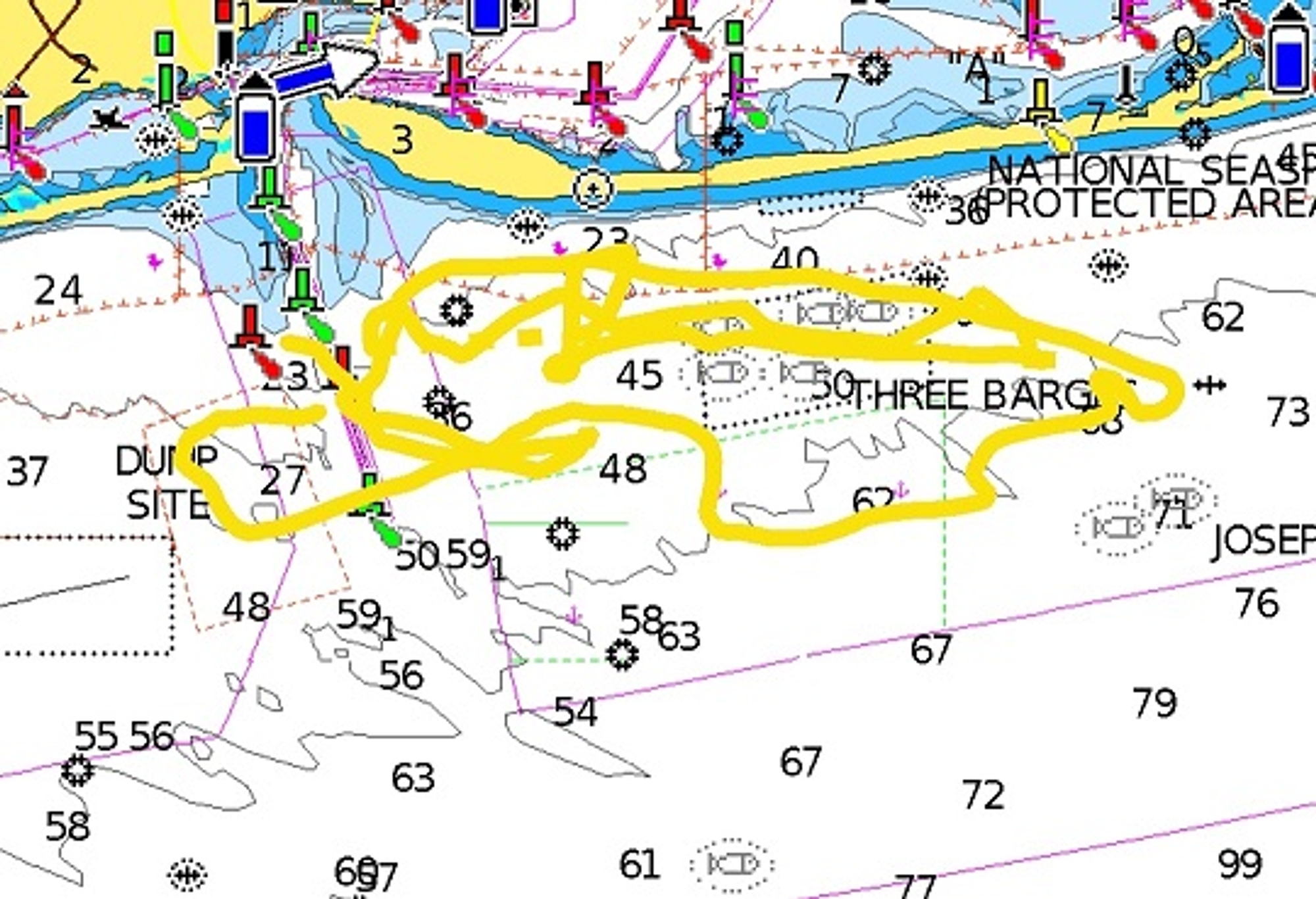

The final stint of the day included back-to-back tacks and gybes. The crew called an end to sailing at 1425. In all, America completed 28 manoeuvres, 5 windward/leewards, sailed approximately 65nm, and had a total flying time of 104min. Top speeds could not accurately be measured today.
Total Tacks: 18 – 12 foil-to-foil, 4 touch & go, 2 touchdowns.
Total Gybes: 10 – 9 foil-to-foil, 1 touch & go.
Recon Notes: Today's figures are approximate as the recon rib struggled to keep up due to the sea state. America was on foil for a total of 104 minutes (1, 6, 15, 4, 19, 14, 15, 3 and 23 minutes respectively)
Take off speed: 16 knots at 100° TWA (True Wind Angle)
Recon Notes: Initial take off was self, 10 additional self up's, 0 tow up's
Onboard AC40 Today:
Helms: Paul Goodison / Tom Slingsby
Trimmers: Lucas Calabrese / Michael Menninger / Andrew Campbell
Conditions: 10:00 E 10-13k/ 12:20 E 10-12k. Wind speed measured 8ft above sea level using a handheld anemometer. Weather AM: 60° sunny. Weather PM: 72° sunny. Sea State AM-PM: 2-4ft chop over swell.
Sails Used:
Mainsail (LEQ MS1): 4 hours 30 minutes
Jib J4 (LEQ J2.1): 3 hours 50 minutes
Dock-Out: 0930 Dock-In: 1506
